Memory

Memory stores structured JSON data on an app, scoped by namespace. It persists across runs so workflows can keep state, pass data between branches, or look up records by matching fields.

How it works

• App-scoped — Data belongs to one app.
• Namespaces — You choose a namespace string per use case (for example deployments or incidents).
• Rows — Each write can add or update rows; each row holds JSON values (object).
• Matching — Read, update, delete, and upsert operations can match rows by field values (JSON containment).

Hello world example

A common use case is tracking the status of an ongoing process, like an incident.

1. Write: When an incident is declared, use an Add Memory node.
   • Namespace: incidents
   • Values: {"id": "{{ $.trigger.incident_id }}", "status": "open"}
2. Read: Later in the workflow (or in a completely separate run triggered by a different event), use a Read Memory node to check the status.
   • Namespace: incidents
   • Match: {"id": "{{ $.trigger.incident_id }}"}
3. Update: When the incident is resolved, use an Update Memory node.
   • Namespace: incidents
   • Match: {"id": "{{ $.trigger.incident_id }}"}
   • Values: {"status": "resolved"}

Namespaces

Namespaces are arbitrary strings that group related memory records. You create a namespace simply by writing to it.

Examples of namespaces:

• deployments: Tracking the version, environment, and status of code rollouts.
• user_preferences: Storing opt-in/opt-out flags for notifications.
• rate_limits: Keeping counters for API usage to prevent throttling.
• approval_requests: Storing pending requests that wait for human interaction.

Persisting data across runs

Runs on the same app are independent: payloads from one run do not automatically appear in the next. Memory is where you store facts that should survive until a later run needs them.

Pattern	How
Staged rollout	Upsert the current stage; next run Read (latest) to decide whether to advance.
Incident handoff	Run 1 Add IDs; Run 2 Read by key to continue the same incident.
Deduplication	Upsert on a stable key; branch on found / notFound.
Counters	Update to merge new values (e.g. attempt count); later runs read the totals.

Components

SuperPlane provides five memory components:

Component	Purpose
Add Memory	Append a new row in a namespace.
Read Memory	Find rows by namespace and match criteria; emits on found or notFound.
Update Memory	Update matching rows by merging new fields; emits on found or notFound.
Delete Memory	Delete matching rows; emits on deleted or notFound.
Upsert Memory	Update the first match, or insert if none match.

Read Memory supports:

• Result mode — all (every match) or latest (most recent).
• Emit mode — allAtOnce (one event with all matches) or oneByOne (one event per row).

See the Components reference for field-level configuration.

Manual memory entry and edits

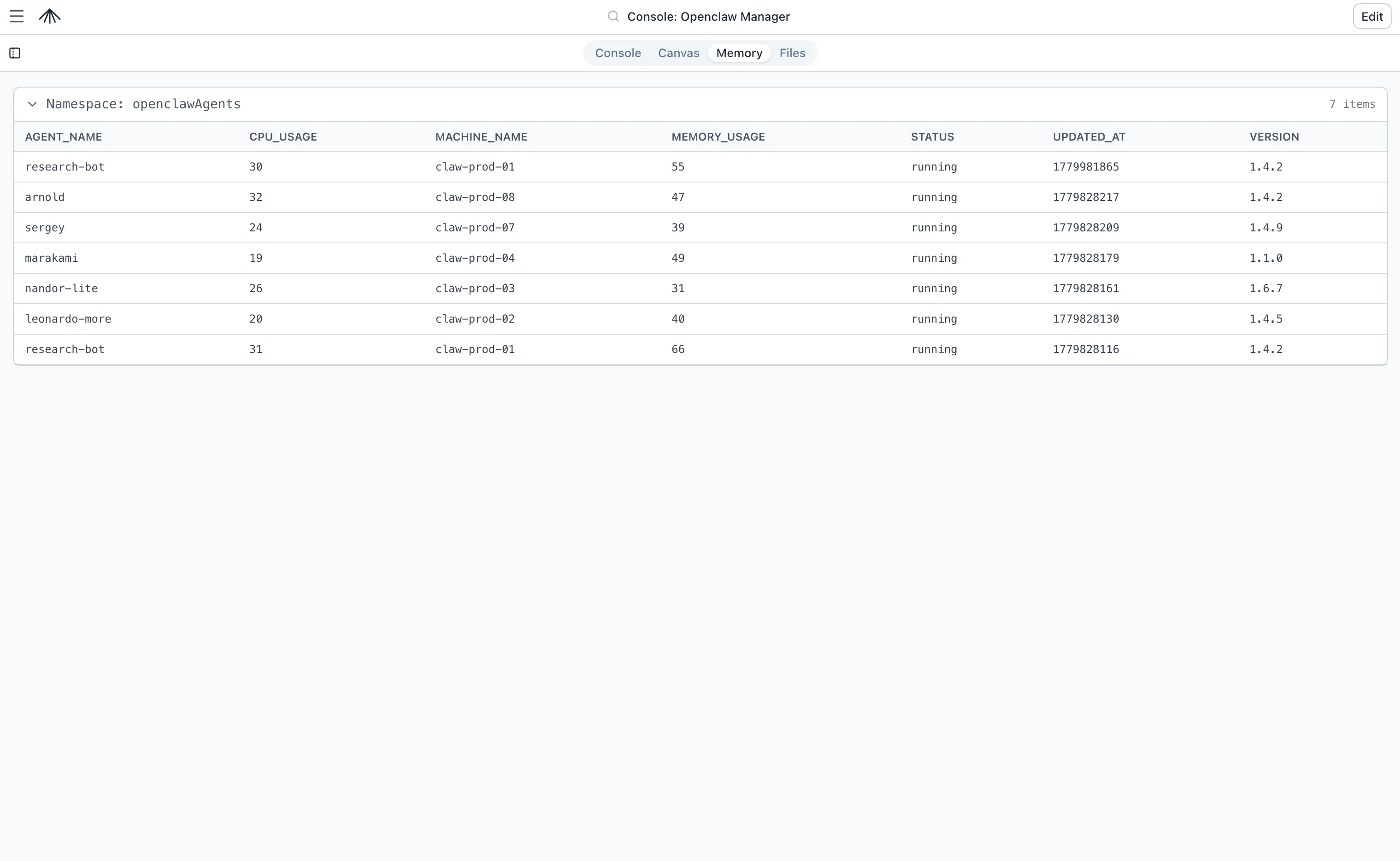

You don’t have to rely solely on workflows to manage memory. You can manually view, add, edit, and delete records directly from the SuperPlane UI.

1. Open your app and navigate to the Memory tab.
2. Select a namespace from the sidebar.
3. Click Add Record to manually insert a new JSON object.
4. Click on any existing row to edit its JSON values or delete it.

This is especially useful for seeding initial configuration data, updating feature flags, or correcting state during an incident.

Read-only behavior

Access to the Memory tab is governed by your app permissions:

• Users with canvases:update permission can add, edit, and delete memory records manually.
• Users with only canvases:read permission will see the Memory tab in read-only mode. They can browse namespaces and inspect JSON values, but the buttons to add, edit, or delete records will be hidden or disabled.

Feeding console widgets

Memory is a primary data source for the Console. You can build live operational dashboards that read directly from memory namespaces.

For example, you can configure a Table widget to display the incidents namespace. As your workflows add or update memory records, the console table updates in real-time. You can also reference memory variables directly in Markdown widgets to display dynamic text (e.g., {{ memory.incidents.length }} open incidents).

See Console Data Sources for more details.

CLI and API

You can list and export memory records using the SuperPlane CLI. This is useful for auditing, backups, or piping data into other scripts.

List all memory records for an app:

superplane apps memory list <app_id>

Filter records to a specific namespace:

superplane apps memory list <app_id> --namespace "incidents"

Memory can also be managed via the REST API (see Public API Reference). Managing memory records requires permissions to read or update the app.
